BOEING 767-300ER (763)

BOEING 767-300ER (763)

CARGO INFORMATION

Cargo Capacity	14,800 kg (32,600 lb)
Compatible Units	LD7, LD9, and LD2

ULDs
LD7

Usable Dimensions
Length: 307 cm (121 in)
Width: 234 cm (92 in)
Height: 160 cm (63 in)

96 Lower Deck Contour Pallet With Net (PMC Series)

Rate Classification	5
Max. Net Weight	4,978kg (10,975 lb)
Tare Weight	120 kg (265 lb)
Max. Gross Weight	5,098 kg (11.239 lb)
Approx. Internal Volume	11.70 m 3 (415 ft 3)
Floor Loading Limit	1,465 kg/m 2 (300 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-8 B787-9

LD7 - 88

Usable Dimensions
Length: 307 cm (121 in)
Width: 208 cm (82 in)
Height: 160 cm (63 in)

88 Lower Deck Contour Pallet With Net (PAP, PAG Series)

Rate Classification	5
Max. Net Weight	4,490 kg (9,000 lb)
Tare Weight	110 kg (243 lb)
Max. Gross Weight	4,600 kg (10,141 lb)
Approx. Internal Volume	10.76 m 3 (380 ft 3)
Floor Loading Limit	1,465 kg/m 2 (300 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-8 B787-9

LD9

Usable Dimensions
Door Width: 292 cm (115 in)
Door Height: 142 cm (56 in)
Container Depth: 208 cm (82 in)

LD9 Full Size Lower Deck Container (AA2, AAP Series)

Rate Classification	5
Max. Net Weight	4,898 kg (10,800 lb)
Tare Weight	200 kg (440 lb)
Max. Gross Weight	5,098 kg (11,239 lb)
Approx. Internal Volume	10.6 m 3 (374 ft 3)
Floor Loading Limit	1,465 kg/m 2 (300 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-8 B787-9

LD2

Usable Dimensions
Door Width: 106.5 cm (42 in)
Door Height: 150 cm (59 in)
Container Depth: 142 cm (56 in)

LD2 Half Size Lower Deck Container (DPN, DPE Series)

Rate Classification	8D
Max. Net Weight	1,150 kg (2,535 lb)
Tare Weight	75 kg (165 lb)
Max. Gross Weight	1,225 kg (2,700 lb)
Approx. Internal Volume	3.4 m 3 (120 ft 3)
Floor Loading Limit	977 kg/m 2 (200 lb/ft 2)
Compatible Aircraft	B767-300

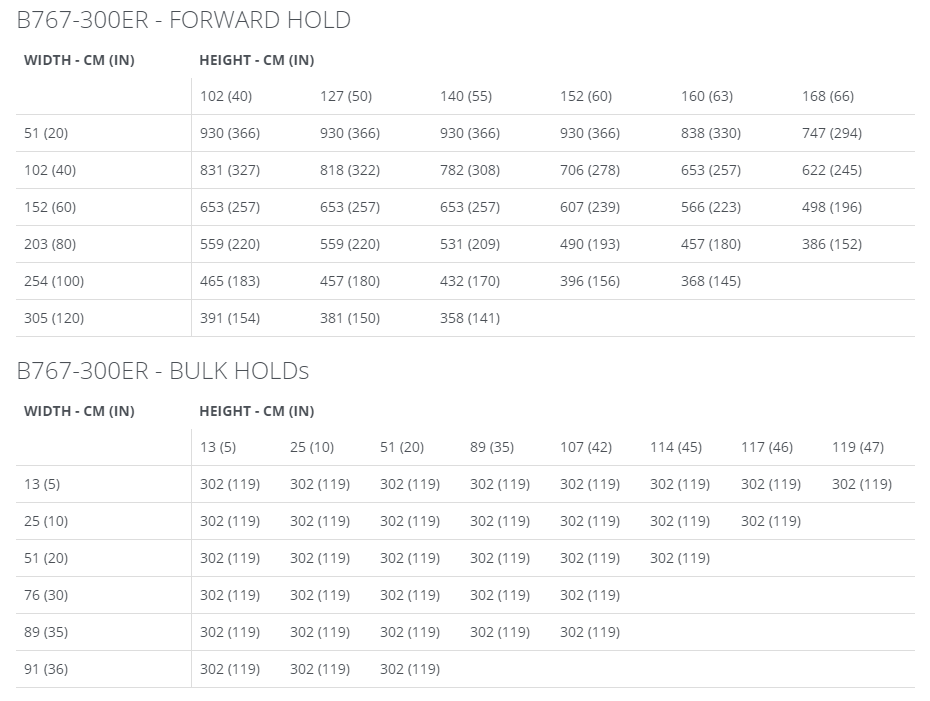

BULK HOLD INFORMATION
