AIRBUS A330-300 (333)

AIRBUS A330-300 (333)

CARGO INFORMATION

Cargo Capacity	13,900 kg (30,644 lb)
Compatible Units	LD7, LD11, LD9, and LD3

ULDs

LD7

Usable Dimensions
Length: 307 cm (121 in)
Width: 234 cm (92 in)
Height: 160 cm (63 in)

96 Lower Deck Contour Pallet With Net (PMC Series)

Rate Classification	5
Max. Net Weight	4,978kg (10,975 lb)
Tare Weight	120 kg (265 lb)
Max. Gross Weight	5,098 kg (11.239 lb)
Approx. Internal Volume	11.70 m 3 (415 ft 3)
Floor Loading Limit	1,465 kg/m 2 (300 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-9

LD7 - 88

Usable Dimensions
Length: 307 cm (121 in)
Width: 208 cm (82 in)
Height: 160 cm (63 in)

88 Lower Deck Contour Pallet With Net (PAP, PAG Series)

Rate Classification	5
Max. Net Weight	4,490 kg (9,000 lb)
Tare Weight	110 kg (243 lb)
Max. Gross Weight	4,600 kg (10,141 lb)
Approx. Internal Volume	10.76 m 3 (380 ft 3)
Floor Loading Limit	1,465 kg/m 2 (300 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-9

LD11

Usable Dimensions
Length: 305 cm (120 in)
Width: 140 cm (55 in)
Height: 160 cm (63 in)

60 Lower Deck Contour Pallet with Net (PLA Series)

Rate Classification	6
Max. Net Weight	3,084 kg (6,799 lb.)
Tare Weight	91 kg (200 lb.)
Max. Gross Weight	3,175 kg (6,999 lb.)
Approx. Internal Volume	7.1 m 3 (250 ft 3)
Floor Loading Limit	1,465 kg/m 2 (300 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-9

LD9

Usable Dimensions
Door Width: 292 cm (115 in)
Door Height: 142 cm (56 in)
Container Depth: 208 cm (82 in)

LD9 Full Size Lower Deck Container (AA2, AAP Series)

Rate Classification	5
Max. Net Weight	4,898 kg (10,800 lb)
Tare Weight	200 kg (440 lb)
Max. Gross Weight	5,098 kg (11,239 lb)
Approx. Internal Volume	10.6 m 3 (374 ft 3)
Floor Loading Limit	1,465 kg/m 2 (300 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-9

LD3

Usable Dimensions
Door Width: 140 cm (55 in)
Door Height: 150 cm (59 in)
Container Depth: 142 cm (56 in)

LD3 Half Size Lower Deck Container (AVE, AVN, AKE, AKN Series)

Rate Classification	8
Max. Net Weight	1,526 kg (3,364 lb)
Tare Weight	62 kg (137 lb)
Max. Gross Weight	1,588 kg (3,500 lb)
Approx. Internal Volume	4.13 m 3 (146 ft 3)
Floor Loading Limit	977 kg/m 2 (200 lb/ft 2)
Compatible Aircraft	B767-300 A330 B777-300 B777-200 B787-9

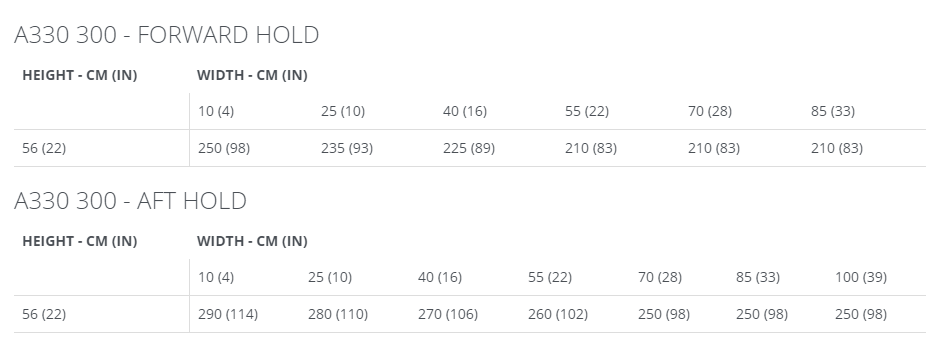

  BULK HOLD INFORMATION
